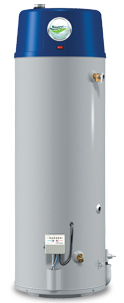

Envirosense Power Vent 90% Efficient Gas Water Heater

The Envirosense™ Power Vent is an ENERGY STAR® qualified, 50-gallon, 76,000 BTU gas water heater, equipped with a fully submerged, spiral-shaped condensing heat exchanger. This design provides much greater heat transfer surface than a standard straight flue tube, resulting in 90% thermal efficiency and higher hot water output than standard 78% efficient water heaters. With a 22” diameter, Envirosense™ Power Vent can be installed in less space than a 75-gallon unit and delivers greater recovery and lower operating costs. The Envirosense™ Power Vent is so advanced, it can deliver endless hot water shower after shower.

Product Specifications

POWER VENT DESIGN FOR INSTALLATION VERSATILITY

- Modular blower, with 120V, 60Hz electrical system (5 amps or less), 6-foot cord with standard 3-prong connector

- Combined horizontal and vertical vent runs terminating through outside wall, using ULC S636 PVC, CPVC or polypropylene pipe as follows:
- 2 ? pipe allows vent runs up to 25 equivalent feet
- 3 ? pipe allows vent runs up to 65 equivalent feet
- 4 ? pipe allows vent runs up to 120 equivalent feet
- Supplied with PVC pipe and elbows to connect heat exchanger outlet to blower, including condensate elbow and drain, and ULC S636 PVC Vent Attenuation Assembly (VAA)

SIDE-MOUNTED TAPS FOR RECIRCULATING SYSTEMS

- Hot and cold “side taps” allow the Envirosense ™ Power Vent to be used for “combination”systems for water heating plus space heating, radiant floor heating or other applicationsrequiring a recirculating hot water loop

- Plugs for recirculating taps are shipped with water heater

INTELLI-VENT™ GAS CONTROL WITH SILICON NITRIDE HOT SURFACE IGNITER

- Premium-grade hot surface igniter eliminates standing pilot

- Electronic circuitry provides superior system diagnostic capabilities plus extremely precise temperature contro

COMMERCIAL-GRADE GLASS LINING WITH TWO MAGNESIUM ANODE RODS

- Superior protection against tank corrosion

- Glass lining protects all “water side” tank surfaces plus inside of internal heat exchanger exposed to condensatee

DIFFUSER DIP TUBE

- Helps reduce lime and sediment buildup, maximize hot water output

- Cross-link polymer withstands long-term exposure to temperatures up to 400°F

SIX-YEAR LIMITED PARTS AND TANK WARRANTY

- Consult written warranty shipped with water heater or contact

- GSW for complete warranty information
